Details

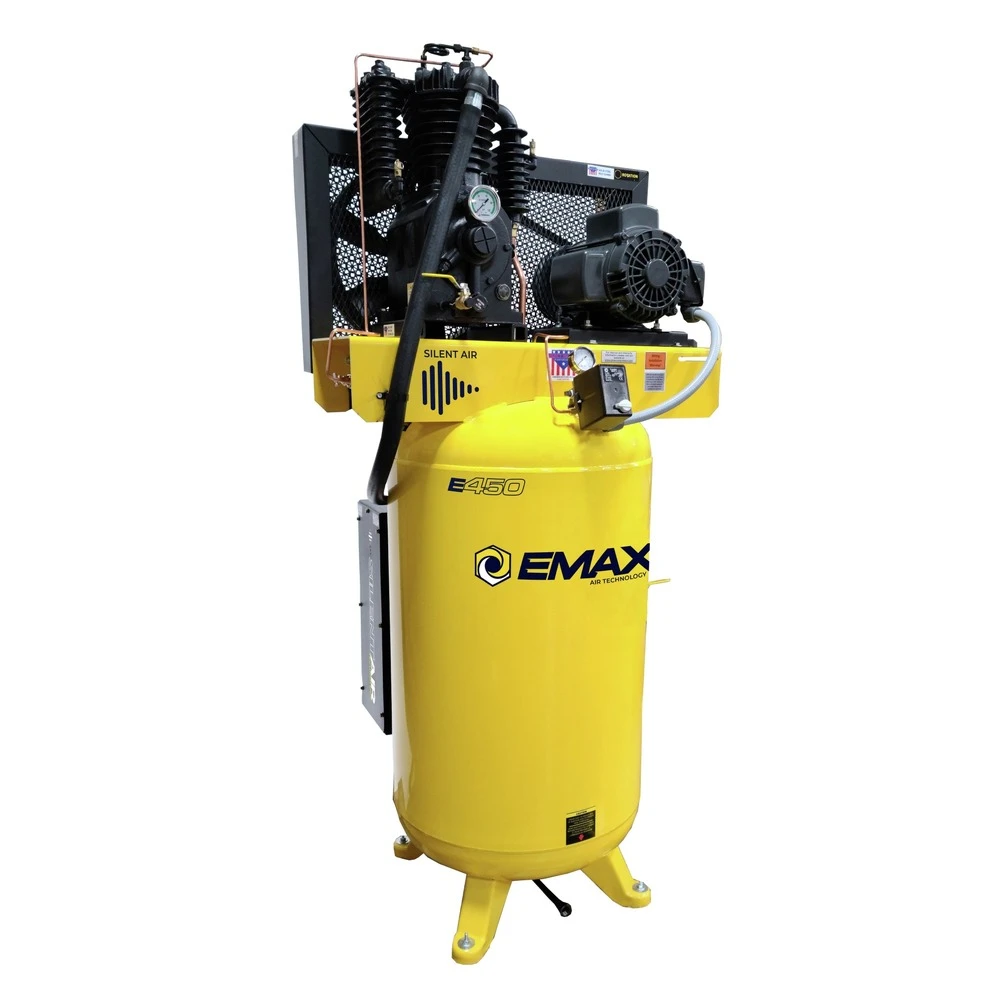

This EMAX Industrial Plus 10 HP 2 Stage V4 3 Phase vertical 120 gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 38 CFM @ 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200 PSI rating, along with our continuous run functionality all paired with all cast iron 70,000 hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35 percent. All backed by the warranty in the industry!
Features:
-
MADE IN USA
-
Patented pressure lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours
-

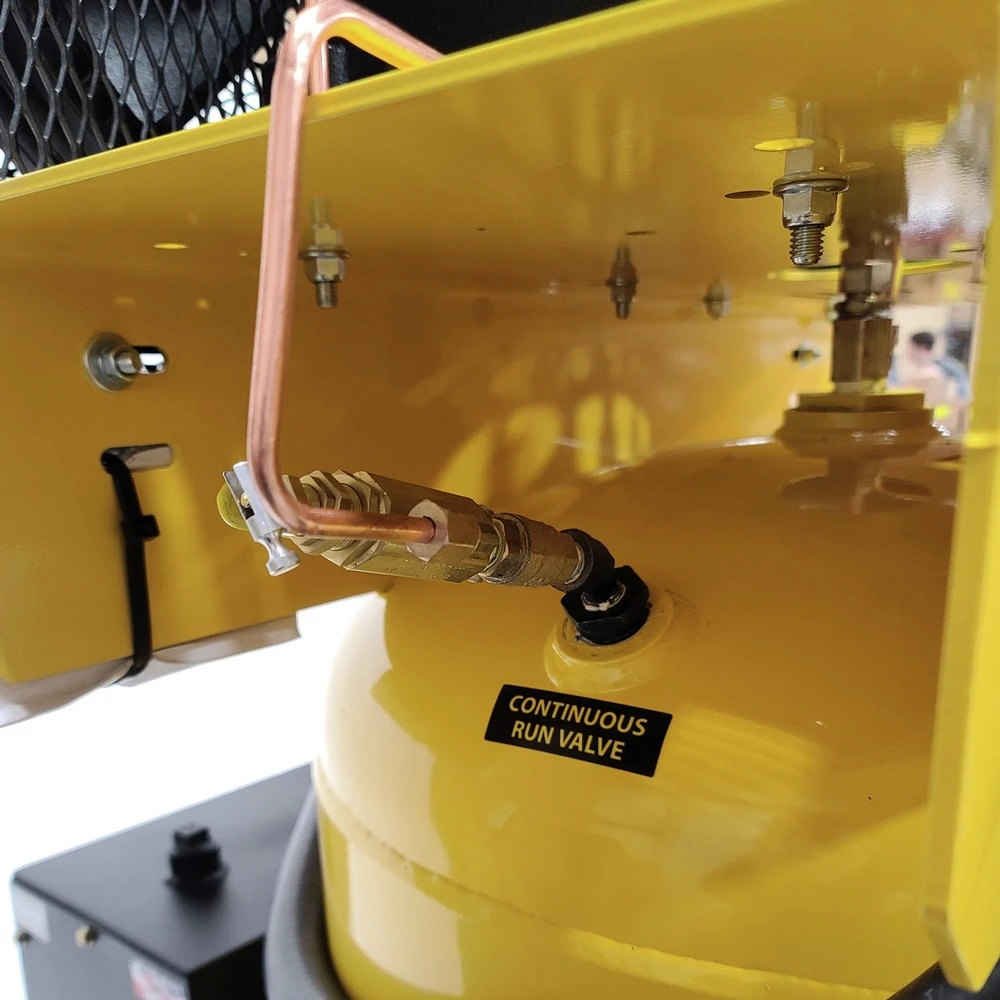

Continuous mode functionality on the silent compressor is for workloads over 50 percent duty cycle eliminates wear and tear on your magnetic contactor
-
Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
-
Auto tank drain 110V dual is timer controlled and eliminates daily maintenance
-

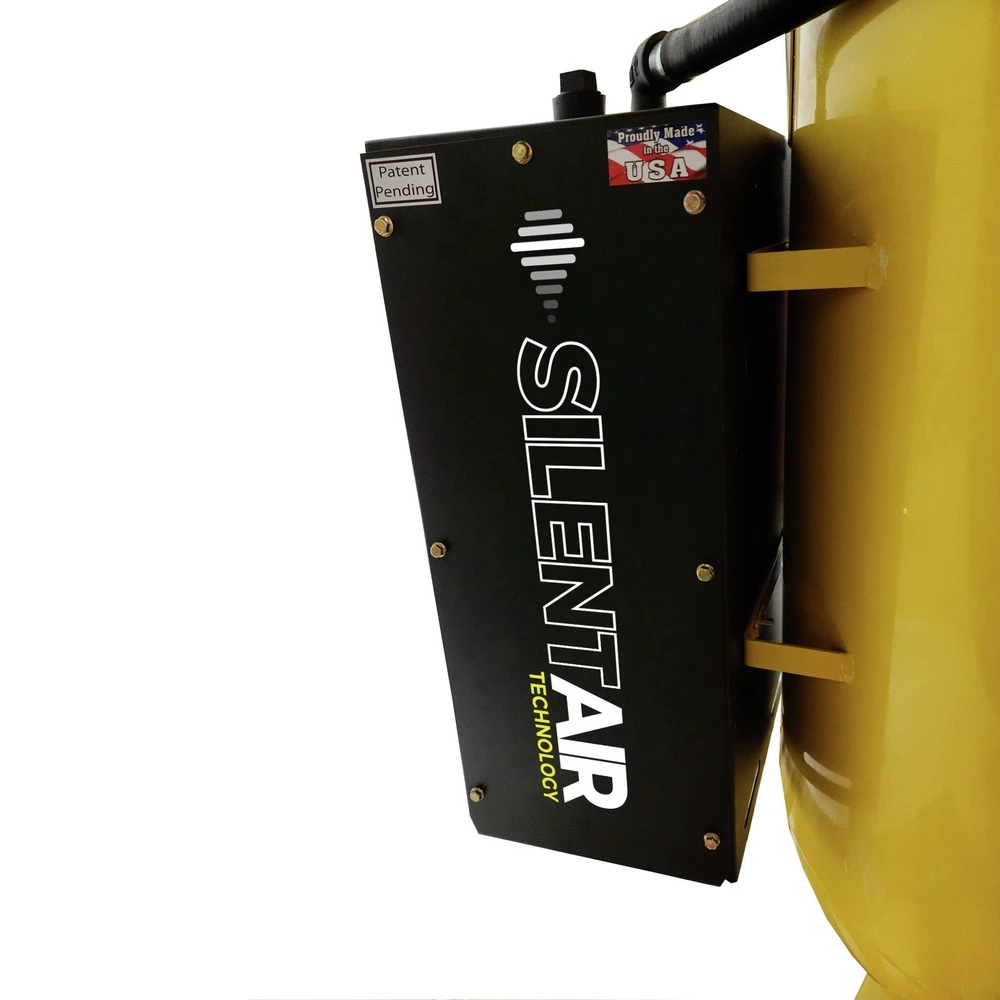

SILENT AIR technology dissipates compressor intake noise by channeling the intake air through a series of baffle plates
-
ETL, UL, CSA and ASME Certified
-
ASME tank certified up to 200 PSI maximum pressure in all 50 USA states
-
208V/230V
-
3-phase compressor delivers 19 SCFM at 100 PSI with a max PSI of 175
-
Powder-coated ASME tank in the compressor is weather-resistant
-
Low 800 RPM patented pressure lubricated solid cast iron pump with cast iron crankcase, not aluminum
-
Low-profile design adds 4 levels of air filtration
-
Industrial low 1,750 RPM 5 HP electric motor
-
Warranty: 1 Year Standard, 5 Year Extended, Lifetime Extended pump eligible with maintenance kit
-
Includes: Belt Tension Adjuster, Magnetic Starter, Automatic Tank Drain, Air Stream Technology, Continuous Run Kit, Industrial Grade Motor, Patented Silent Air System Noise Suppression System, Patented Solid Cast Iron Pump with Cast Iron Crankcase
-
Tank outlet size: 3/4 in.
What’s Included:
-
5 HP 80 gal. 2-Stage Single Phase Solid Cast Iron Industrial Inline Pressure Lubricated Pump Plus SILENT AIR Compressor – ESP05V080I1
